ALxxF MP300



 Product specification

 Main features
 - All Outdoor solution ALxxF MP300
 - Frequency bands 4, 5, 6, 7, 8, 10, 11, 13, 17, 18 and 24 GHz
 - Channel bandwidth 3.5 - 112 MHz
 - Modulation scheme QPSK - 1024QAM
 - Transmission capacity up to 460 Mbps full duplex
 - 1x Gigabit Ethernet user interface
 - Maximal packet length 2048 bytes
 - Optimized for IPTV transmission
 - Possibility of radio transmission crypting
 - One S-STP cable for user data diagnostic data and power feeding
 - Overvoltage protection integrated in ODU
 - Overvoltage protection integrated in terminal box
 - Possibility of redundant power supply
 - Low power consumption
 - Full software configuration
 - Forward error correction (FEC)
 - Automatic power control (ATPC)
 - Hiteless adaptive coding and modulation (Hitless ACM)
 - Digital predistorsion for higher Tx power availability
 - Spectral analyser
 - Management system with possibility of SQL database
 - SNMP support

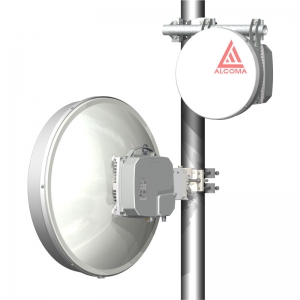

 Description     ODU ALxxF MP300
ALCOMA ALxxF MP300 is compact, easy to deploy and low cost microwave radio relay link designed for lastmiles. It is suitable for building LAN, MAN and WAN networks. The link can use channel bandwidth up to 112 MHz and modulation scheme up to 1024QAM. Its transmission capacity is up to 460 Mbps full duplex.
The link operates in licensed and licence free bands according to CEPT, ETSI and FCC recommendations. It can be operated according to local regulations in each country.
The whole equipment is built in outdoor unit (ODU) with the same mechanical and electrical desingn as ALxxF MP400. ODU is integrated with antenna to one compact system. It uses protected terminal box instead of indoor unit. User interfaces and powering is protected with surge protectors both in ODU and protected terminal box. Protected terminal box may be installed either on DIN rail or in 19“rack. Horn, 35, 65, 90 and 120 cm antennas can be used with the equipment.
The equipment contains one Gigabit Ethernet interface for both data and NMS channel. The ODU and protected terminal box are interconnected via one S-STP Cat.7 cable which is used both for power feeding and user interface.   ODU ALxxF MP300
The link incorporates a powerful FEC with an optional deep interleaving to ensure low residual BER<10-13. The link also supports Automatic transmit power control (ATPC) and Hitless adaptive coding and modulation (ACM). All these functions participate on high transmission quality under all weather conditions.
ALCOMA ASD CLIENT is application for maintenance, management and diagnostics of link. It allows real time management of large radio networks and simplifies their maintenance. NMS interface may be separated from user data traffic. SNMP protocol is supported by the equipment too. Client server solution ALCOMA ASD SERVER with SQL database is suitable for large and heterogeneous networks. ALCOMA ASD CLIENT

 Set of protected terminal boxes for 19” rackProtected terminal box ALS1
