ALxxF MP400


 Technical parameters
 AL5F MP400 | AL6F MP400 | AL7F MP400 | AL8F MP400 | AL10F MP400 | AL11F MP400 | AL13F MP400
 AL17F MP400 | AL18F MP400 | AL24F MP400 SRD

 Product specification

 Main features
 - All Outdoor solution ALxxF MP400
 - Frequency bands 4, 5, 6, 7, 8, 10, 11, 13, 17, 18 and 24 GHz
 - Channel bandwidth 3.5 - 112 MHz
 - Modulation scheme QPSK - 1024QAM
 - Transmission capacity up to 900 Mbps full duplex
   (1800 Mbps aggregate) for 1+0 and up to 1800 Mbps
   full duplex (3600 Mbps aggregate) for 2+0
 - 2x Gigabit Ethernet user interfaces
 - Optionaly SFP slot for optical/electric Ethernet
 - Maximal packet length 10240 bytes
 - Optimized for IPTV transmission
 - 1+0, 1+1 and 2+0 system configurations
 - Possibility of radio transmission crypting
 - Possibility of using one S-STP cable for user data,
   diagnostic data and power feeding
 - Overvoltage protection integrated in ODU
 - Overvoltage protection integrated in terminal box
   with user interfaces
 - Possibility of redundant power supply
 - Low power consumption
 - Full software configuration
 - Forward error correction (FEC)
 - Automatic power control (ATPC)
 - Hiteless adaptive coding and modulation (ACM)
 - Digital predistorsion for higher Tx power availability
 - Spectral analyser (only for selected bands)
 - Management system with possibility of SQL database
 - SNMP support

 Description     ODU ALxxF MP400
ALCOMA ALxxF MP400 is compact, easy to deploy and low cost microwave radio relay link for backbones and lastmiles. It is suitable for building LAN, MAN and WAN networks. The link can use channel bandwidth up to 112 MHz and modulation scheme up to 1024QAM. Its transmission capacity is up to 900 Mbps full duplex (1800 Mbps aggregate) for 1+0 system configurationand up to 1800 Mbps full duplex (3600 Mbps aggregate) for 2+0 system configuration.
The link operates in licensed and licence free bands according to CEPT, ETSI and FCC recommendations. It can be operated according to local regulations in each country.

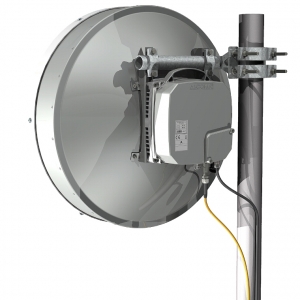

The whole equipment is built in outdoor unit (ODU) with the same mechanical and electrical desingn as ALxxF MP360. ODU is integrated with antenna to one compact system. It uses protected terminal box instead of indoor unit. User interfaces and powering is protected with surge protectors both in ODU and protected terminal box. Protected terminal box may be installed either on DIN rail or in 19“rack. Horn, 35, 65, 90 and 120 cm antennas can be used with the equipment.
The equipment contains two Gigabit Ethernet interfaces with optional SFP slot for electric/optical Gigabit Ethernet. The whole transmission capacity can be transmitted either in one channel or split to two independent data channels. The ODU and protected terminal box are interconnected via one or two S-STP Cat.7 cables which are used both for power feeding and user interfaces. There are RJ-45 user interface connectors on protected terminal box. User interface connector is directly on ODU in case of using SFP slot. Fibre optic type is determined by used SFP module. In this case S-STP cable either only powers the equipment or may be used both for powering and second data channel or management data channel.     ODU ALxxF MP400
The link incorporates a powerful FEC with an optional deep interleaving to ensure low residual BER<10-13. The link also supports Automatic transmit power control (ATPC) and Hitless adaptive coding and modulation (ACM). All these functions participate on high transmission quality under all weather conditions.
ALCOMA ASD CLIENT is application for maintenance, management and diagnostics of link. It allows real time management of large radio networks and simplifies their maintenance. NMS interface may be separated from user data traffic. SNMP protocol is supported by the equipment too. Client server solution ALCOMA ASD SERVER with SQL database is suitable for large and heterogeneous networks. ALCOMA ASD CLIENT

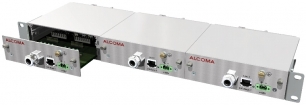

 Set of protected terminal boxes for 19” rackProtected terminal box ALS1
