ALxxF MP100

 Technical parameters
 AL4F MP100 | AL5F MP100 | AL6F MP100 | AL7F MP100 | AL8F MP100 | AL10F MP100 | AL11F MP100 | AL13F MP100
 AL17F MP100 | AL24F MP100 SRD

 Product specification

 Main features
 - All Outdoor solution ALxxF MP100
 - Frequency bands 4, 5, 6, 7, 8, 10, 11, 13, 17 and 24 GHz
 - Channel bandwidth 3.5 - 28 MHz
 - Modulation scheme QPSK - 128QAM
 - Transmission capacity up to 100 Mbps full duplex
   (200 Mbps aggregate)
 - 1x Fast Ethernet user interface
 - Optional second Fast Ethernet interface for independent
   management
 - Maximal packet length 1540 bytes
 - 1+0 system configuration
 - Possibility of radio transmission crypting
 - One S-STP cable for user data, diagnostic data and
   power feeding
 - Overvoltage protection integrated in ODU
 - Optionaly overvoltage protection integrated in terminal box
 - Low power consumption
 - Full software configuration
 - Forward error correction (FEC)
 - Automatic power control (ATPC)
 - Adaptive coding and modulation (ACM)
 - Spectral analyser (only for selected bands)
 - Management system with possibility of SQL database
 - SNMP support

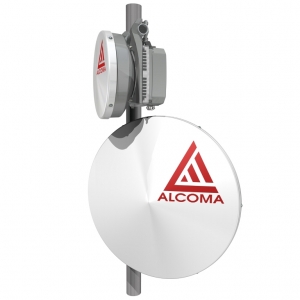

Description     ODU ALxxF MP100
ALCOMA ALxxF MP100 is compact, easy to deploy and low cost microwave radio relay link for lastmiles. It is suitable for building LAN, MAN and WAN networks. The link can use channel bandwidth up to 28 MHz and modulation scheme up to 128QAM. Its transmission capacity is up to 100 Mbps full duplex (200 Mbps aggregate).
The link operates in licensed and licence free bands according to CEPT, ETSI and FCC recommendations. It can be operated according to local regulations in each country.
The whole equipment is built in outdoor unit (ODU). ODU is integrated with antenna to one compact system. It uses terminal box or protected terminal box instead of indoor unit. User interfaces and powering is protected with surge protectors both in ODU and protected terminal box. Terminal box is simplified solution suitable for installation to any indoor place, it should be combined with additional overvoltage protector. Protected terminal box may be installed either on DIN rail or in 19“rack. 35, 65, 90 and 120 cm antennas can be used with the equipment.
The equipment contains one or two Fast Ethernet interfaces. The whole transmission capacity is transmitted through first interface. Second interface can be used only for diagnostic data. The ODU and terminal box/protected terminal box are interconnected via one S-STP Cat.7 cable which is used both for powering and user interfaces. There is one RJ-45 user interface connector on terminal box and two RJ-45 user interface connectors on protected terminal box.     ALCOMA ASD CLIENT
The link incorporates powerful Trellis Coded Modulation with Concatenated Reed Salomon error correction to ensure low residual BER<10-13. The link also supports Automatic transmit power control (ATPC) and Adaptive coding and modulation (ACM). All these functions participate on high transmission quality under all weather conditions.
ALCOMA ASD CLIENT is application for maintenance, management and diagnostics of link. It allows real time management of large radio networks and simplifies their maintenance. NMS interface may be separated from user data traffic. SNMP protocol is supported by the equipment too. Client server solution ALCOMA ASD SERVER with SQL database is suitable for large and heterogeneous networks.

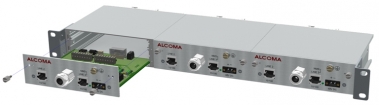

Set of protected terminal boxes for 19” rackProtected terminal box ALS1-2FETH Terminal box ALM100
