ALCOMA UNI2 (2 ft)

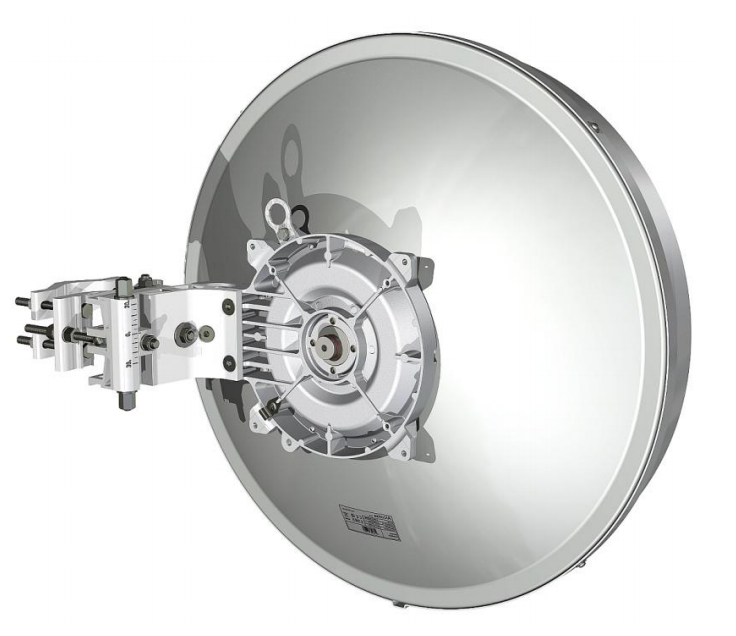

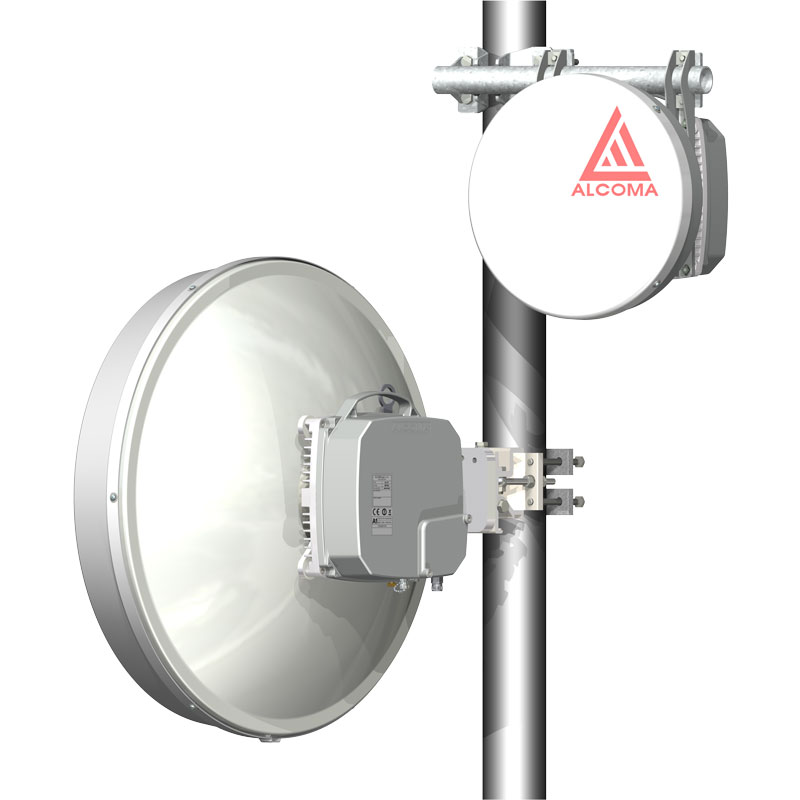

Parabolic microwave 2 ft high performance antenna with interface for ZENITH links. The antenna is equiped with mechanism for fine tuning in both directions. A radome (protection against ice) is also standard part of this antenna.




General parameters:

  • Antenna diameter: 2 ft
  • Feeder: single / dual polarization
  • Polarization: horizontal / vertical
  • Operating temperature: -45 to +55 °C
  • Antenna color: light gray
  • Type of radome: plastic
  • Universal for all frequency bands (only simple feeder change is necessary)


Mechanical parameters:

  • Wind stability: max 30 m/s (110 km/h)
  • Wind destruction speed: max 55 m/s (200 km/h)
  • Weight: 8.8 kg
  • Pipe diameter: 42 - 115 mm

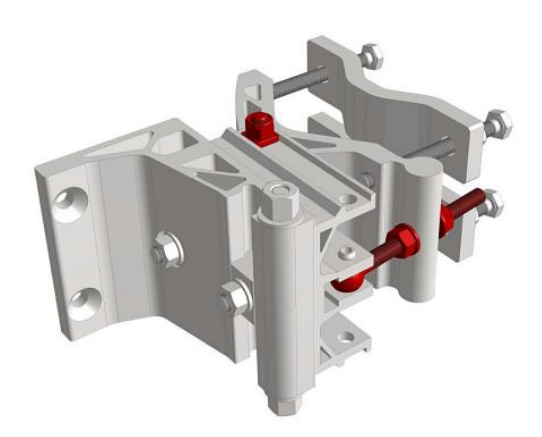

  • Azimuth fine adjustement: ±15°
  • Elevation fine adjustement: ±30°



BROCHURE UNI2 - 6  download
BROCHURE UNI2 - 7  download
BROCHURE UNI2 - 10  download
BROCHURE UNI2 - 13  download
BROCHURE UNI2 - 15  download
BROCHURE UNI2 - 17  download
BROCHURE UNI2 - 18  download
BROCHURE UNI2 - 24  download
BROCHURE UNI2 - 26  download
BROCHURE UNI2 - 32  download
BROCHURE UNI2 - 38  download
BROCHURE UNI2 - 80             download
