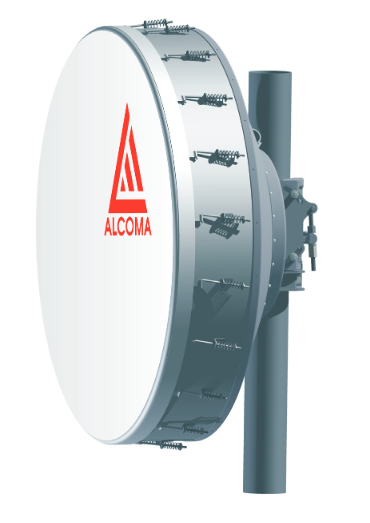

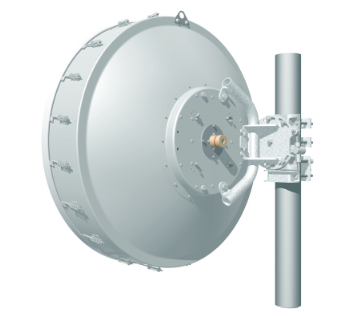

ALCOMA UNI3 (3 ft)

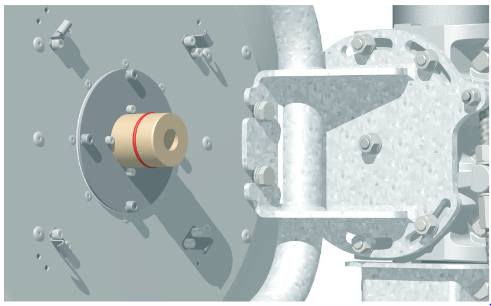

Parabolic microwave 3 ft high performance antenna with interface for ZENITH links. The antenna is equiped with mechanism for fine tuning in both directions. A radome (protection against ice) is also standard part of this antenna.



General parameters:

  • Antenna diameter: 3 ft
  • Feeder: single / dual polarization
  • Polarization: horizontal / vertical
  • Operating temperature: -45 to +55 °C
  • Antenna color: light gray
  • Type of radome: polyester or plastic





Mechanical parameters:

  • Wind stability: max 30 m/s (110 km/h)
  • Wind destruction speed: max 55 m/s (200 km/h)
  • Weight: 26 kg
  • Pipe diameter: 101 - 115 mm
  • Azimuth fine adjustement: ±7°
  • Elevation fine adjustement: ±15°








BROCHURE UNI3 - 6  download
BROCHURE UNI3 - 7  download
BROCHURE UNI3 - 10  download
BROCHURE UNI3 - 13  download
BROCHURE UNI3 - 15  download
BROCHURE UNI3 - 17  download
BROCHURE UNI3 - 18  download
BROCHURE UNI3 - 23  download
BROCHURE UNI3 - 24  download
BROCHURE UNI3 - 26              download
