ZENITH Q



 Technical parameters

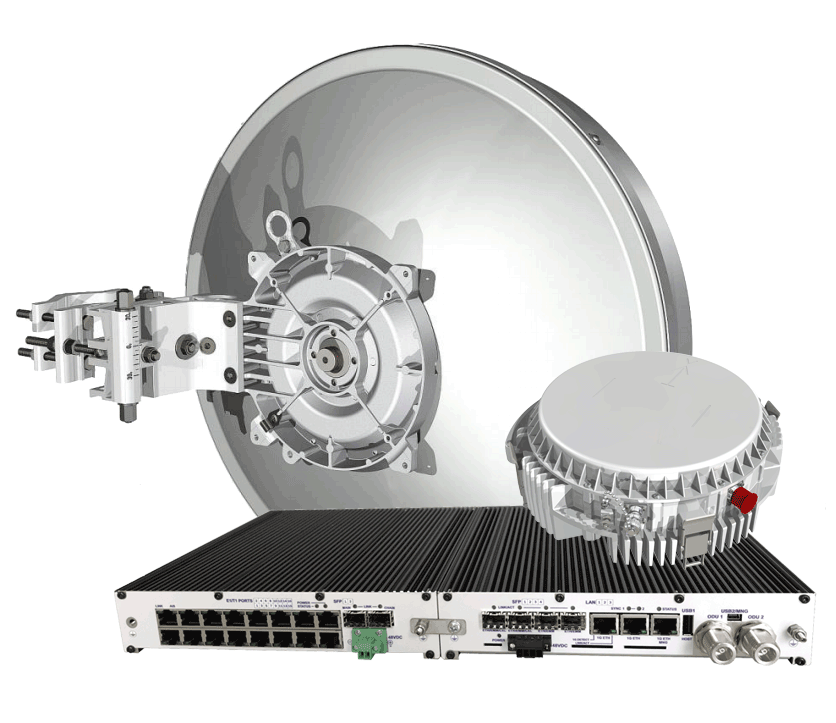

ZENITH Q is a professional PDH/Ethernet split solution for high capacity networks, IPTV, CCTV distribution and many more. It is compact, easy to deploy, upgradable and modular microwave radio relay link already prepared for future grow along with customer needs any time in the future.






Main features:


  • Frequency bands 6 – 38 GHz
  • Transmission capacity 900 Mbps full duplex (for 1+0 system)
  • Bandwidth 3.5 - 112 MHz
  • Modulation scheme QPSK - 2048 QAM
  • Up to 63 E1, 3x Ethernet 1000 BaseT
  • Optional STM-1 pass through
  • Adaptive coding and modulation (ACM)
  • Automatic TX power control (ATPC)
  • Cross polarization interference cancellation (XPIC)
  • SyncE/1588
  • Standard 1U 19“ unit IDU
  • System configurations 1+0, 1+1, 2+0, 2x2

Ethernet features:

  • MTU up to 9728 Bytes
  • IEEE 802.1D-2004
  • IEEE 802.1Q-2003
  • IEEE 802.3ad
  • MEF 6, 9, 10.1, 11, 14
  •  ITU-T Rec. G.8032
  • QoS Port-based, 802.1Q VLAN TAG
  • DiffServ, four-level priority queue


Management system:

  • Built-in web-based GUI,
  • Command line interface
  • SNMPv1, SNMPv2, SNMPv3
  • Independent NMS channel
  • Software configurable


Typical applications:

  • WIMAX/LTE/4G backhaul
  • LAN/MAN/WAN
  • IPTV and CCTV distribution
  • B2B connections
  • Interconnecting PBXs
