Power supplies

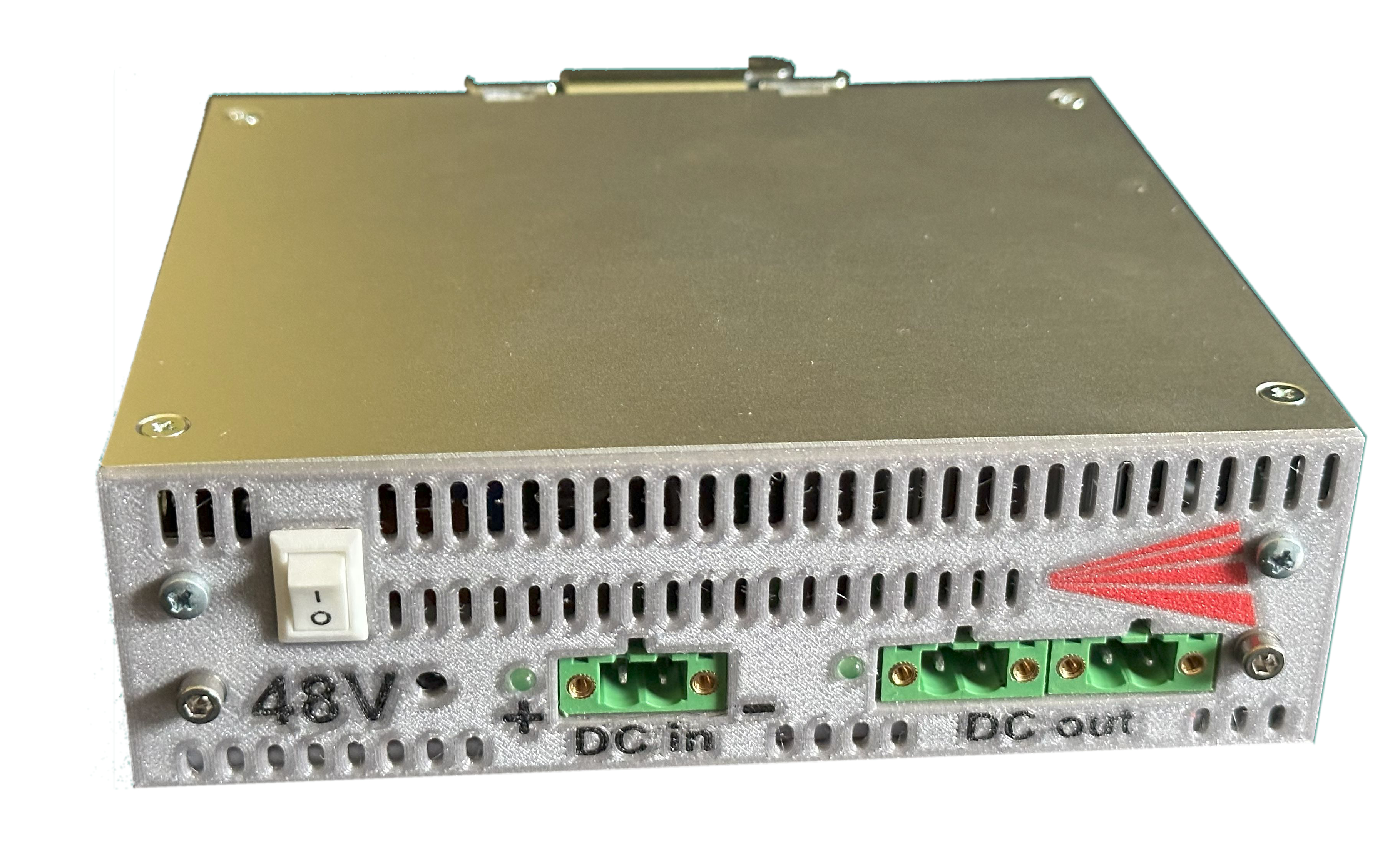

DC UPS BBDCS 12/24/48V
The BBDCS is an indoor DC UPS with 48V DC, 24V DC or 12V DC input/output voltage and LiFePo4 batteries. It is designed for a short time power backup of variety of telecommunications equipment. Small form factor and the possibility of DIN rail installation makes it ideal for power backup of wireless links, routers or switches installed in remote standalone racks.
- Input voltage 12-15V/24-28V/44-55V DC
- Output voltage 12V/24V/48V DC
- Output current <3A
- Battery capacity 23 Wh or 64 Wh
- Battery type LiFePo4
- Low voltage cutoff: Yes, managed by BMS
- Operating temperature range 0°C - 45°C
- Number of output ports 2
- Output overcurrent protection
- Possible start without mains
- Dimensions 14.7 × 16.3 × 4.4 cm
- Weight 1.1 - 1.8 kg based on version and battery type

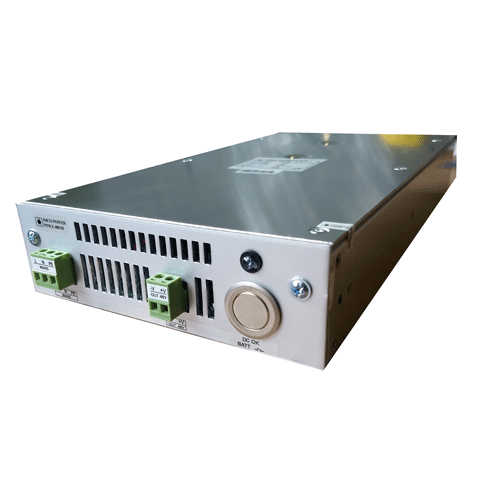

UPS PS70.Z 4801B 1,5Ah
- Input voltage 230V ~ 50Hz (+/- 10%)
- Input current 0,4A
- Output voltage 48V (=)
- Output current 0,8A
- Battery LiFePo4 12V, 1,5Ah
- Charge current 0,7A
- LVD 10,5V
- Dimensions W x H x D (mm) 147 x 44 x 134
UPS PS70.Z 4801B 2,3Ah
- Output voltage 48V (=)
- Output current 0,8A
- Battery LiFePo4 12V, 2,3Ah
- Charge current 0,7A
- LVD 10,5V
- Dimensions W x H x D (mm) 147 x 44 x 270

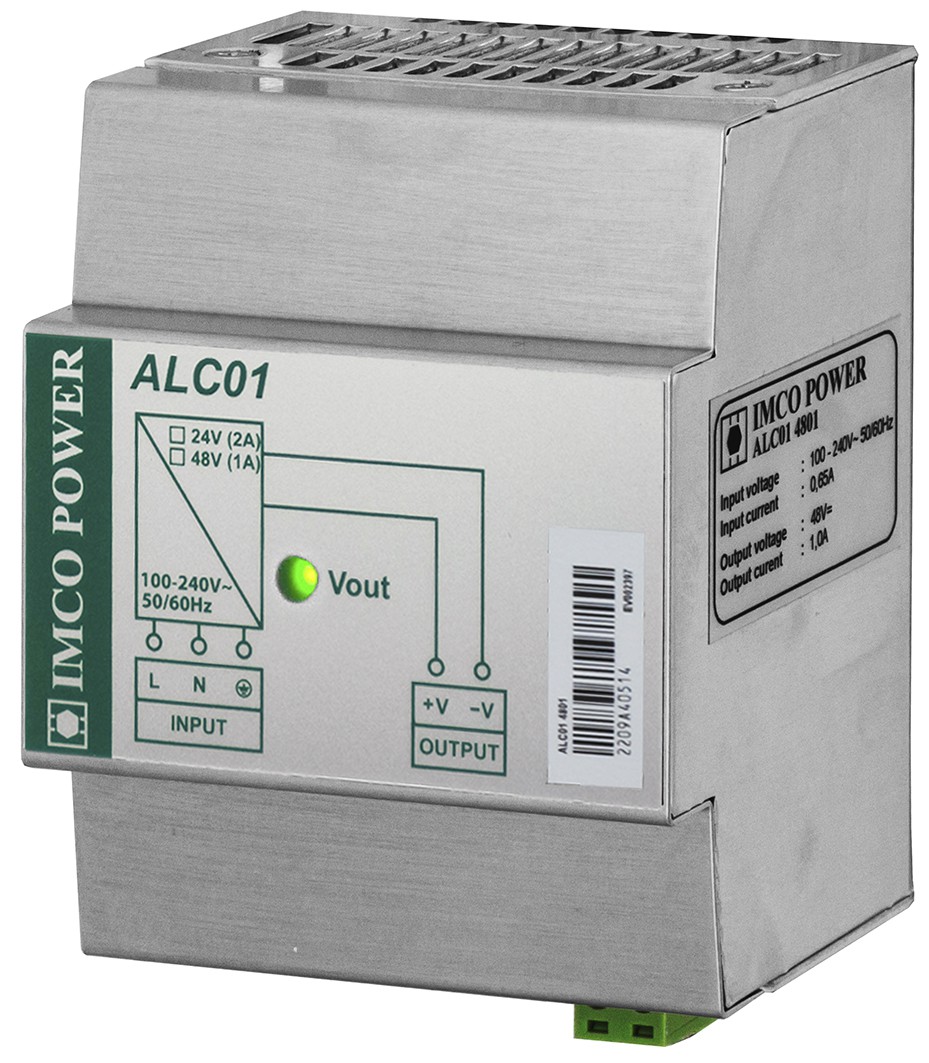

Universal power supply ALC01
- DIN rail universal power supply
- Input voltage 100-265V~50/60Hz
- Output voltage 48V(1A)
- Output power 50W
- Use in an industrial environment from -25°C - +60°C
- Surge protection, short-circuit protection
- Galvanic isolation 4kV, extra PE clamp for Vout grounding
- Standards: EN 60950, EN 55032, EN 61000-3-2
- Long life used components
- Dimensions W x H x D (mm) 71x90x68
- Weight 0.28 kg

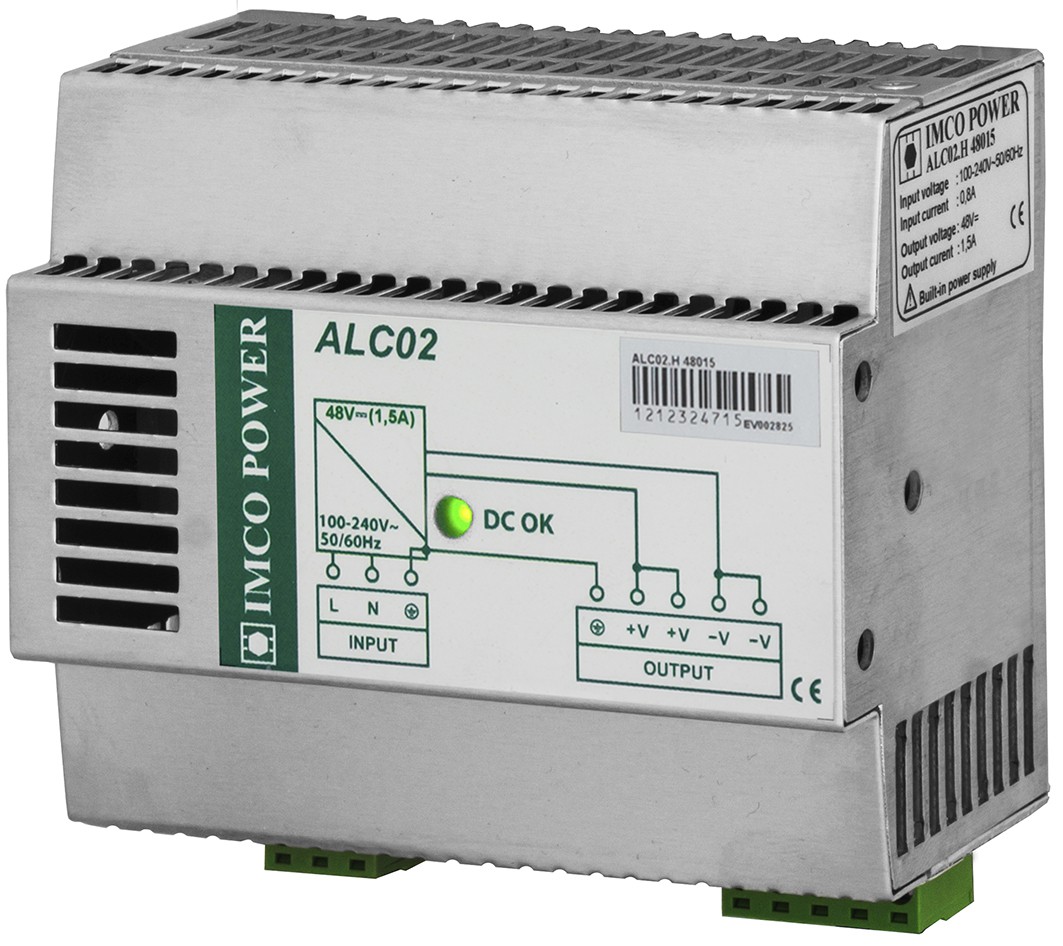

Universal power supply ALC02
- DIN rail universal power supply
- Input voltage 100-265V~50/60Hz
- 100-265V~50/60Hz
- Output voltage 48V(1.5A)
- Output power 70W
- Use in an industrial environment from -25°C - +60°C
- Surge protection, short-circuit protection
- Galvanic isolation 4kV, extra PE clamp for Vout grounding
- Standards: EN 60950, EN 55032, EN 61000-3-2
- Long life used components
- Dimensions W x H x D (mm) 106x90x68
- Weight 0.47kg

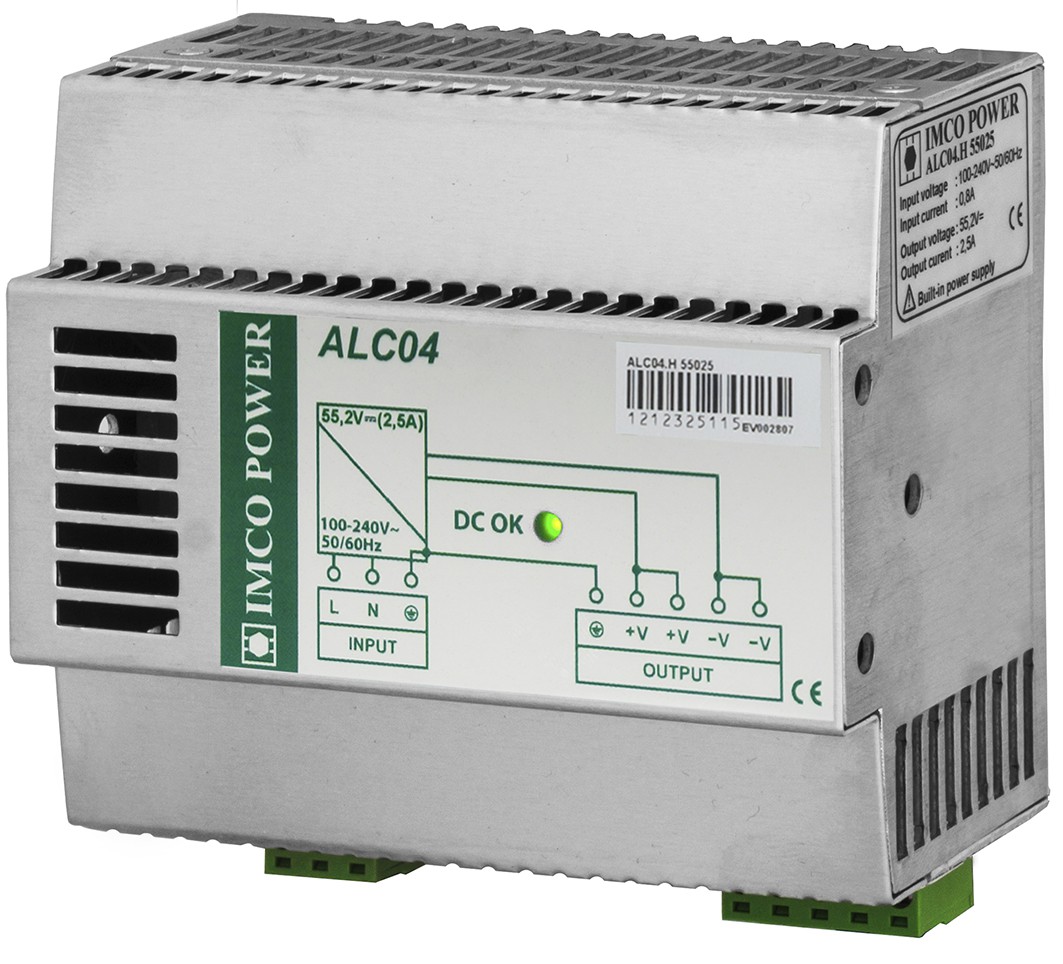

Universal power supply ALC04
- DIN rail universal power supply
- Input voltage 100-265V~50/60Hz
- Output voltage 55.2V(2.5A)
- Output power 140W
- Use in an industrial environment from -25°C - +60°C
- Surge protection, short-circuit protection,
- Galvanic isolation 4kV, extra PE clamp for Vout grounding
- Standards: EN 60950, EN 55032, EN 61000-3-2
- Long life used components
- PFC
- ALC04 output is with IU voltage characteristic, which makes it suitable for operation as a battery charger
- Dimensions W x H x D (mm) 106x90x68
- Weight 0.34kg
